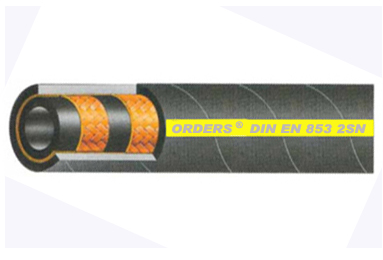

DIN EN 853 2SN SAE 100 R2 AT
HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: two high tensile steel wire braids
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°Cto +121°C
Nominal
ф |
Inside ф |
Braid
ф |
Outside
ф |
Working pressure |
Test pressure |
Burst pressure |
Bend radius |
Weight |
mm |
inch |
mm |
mm |
mm |
bar |
psi |
bar |
bar |
mm |
kg/m |
5 |
3/16 |
4.8 |
11.1 |
13.4 |
415 |
6020 |
990 |
1650 |
90 |
0.31 |
6 |
1/4 |
6.4 |
12.7 |
15 |
400 |
5800 |
960 |
1600 |
100 |
0.33 |
8 |
5/16 |
7.9 |
14.3 |
16.6 |
350 |
5075 |
840 |
1400 |
115 |
0.39 |
10 |
3/8 |
9.5 |
16.7 |
19 |
330 |
4785 |
790 |
1320 |
125 |
0.5 |
12 |
1/2 |
12.7 |
19.8 |
22.2 |
275 |
3990 |
660 |
1100 |
180 |
0.59 |
16 |
5/8 |
15.9 |
23 |
25.4 |
250 |
3625 |
600 |
1000 |
200 |
0.71 |
19 |
3/4 |
19 |
27 |
29.3 |
215 |
3120 |
515 |
850 |
240 |
0.86 |
25 |
1 |
25.4 |
34.9 |
38.1 |
165 |
2395 |
395 |
650 |
300 |
1.28 |
31 |
1-1/4 |
31.8 |
44.5 |
48.3 |
125 |
1815 |
300 |
500 |
420 |
2.02 |
38 |
1-1/2 |
38.1 |
50.8 |
54.6 |
90 |
1305 |
215 |
360 |
500 |
2.2 |
51 |
2 |
50.8 |
63.5 |
67.3 |
80 |
1160 |
190 |
320 |
630 |
2.85 |
